轻量化连接技术及验证

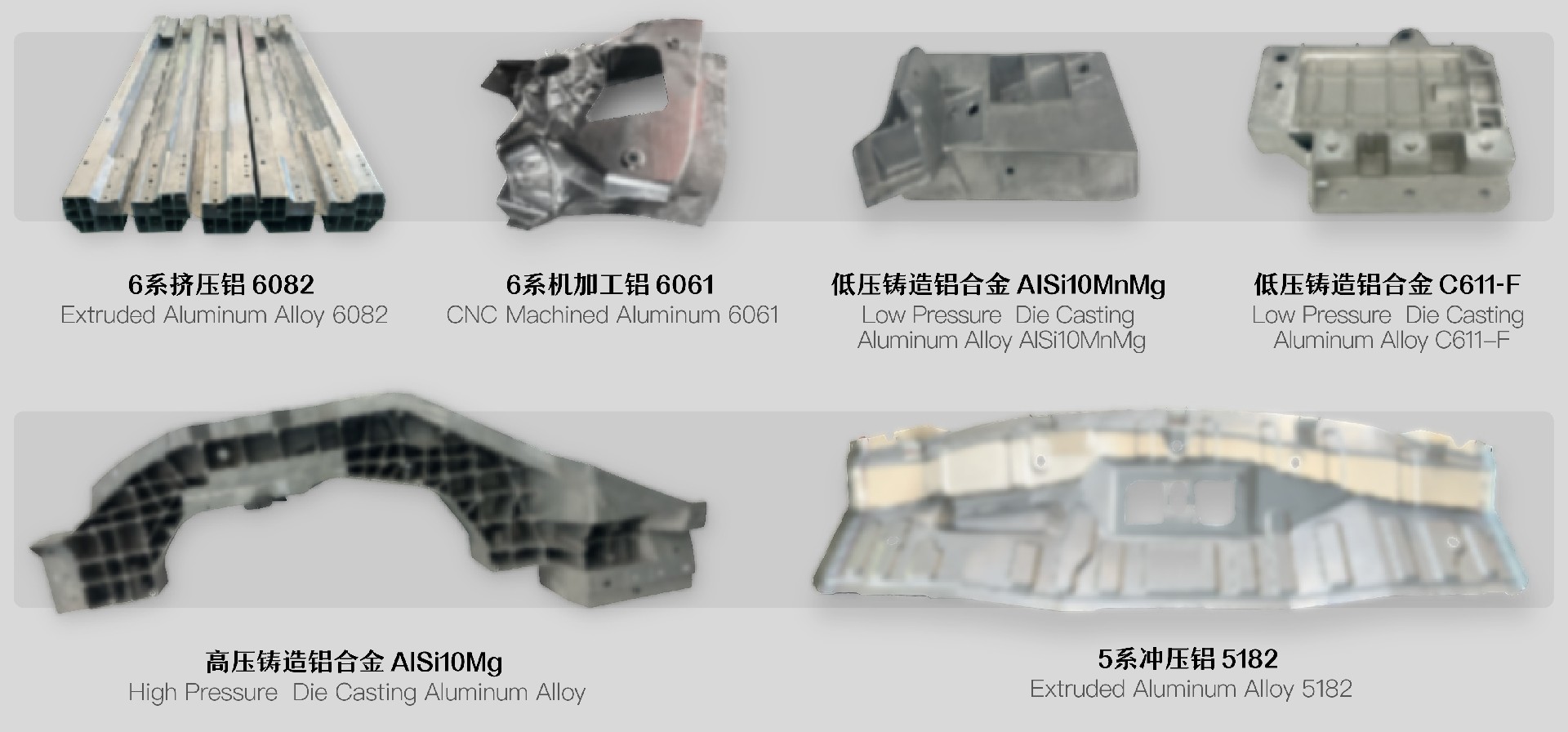

1.轻量化材料主要应用Material of Lightweight application

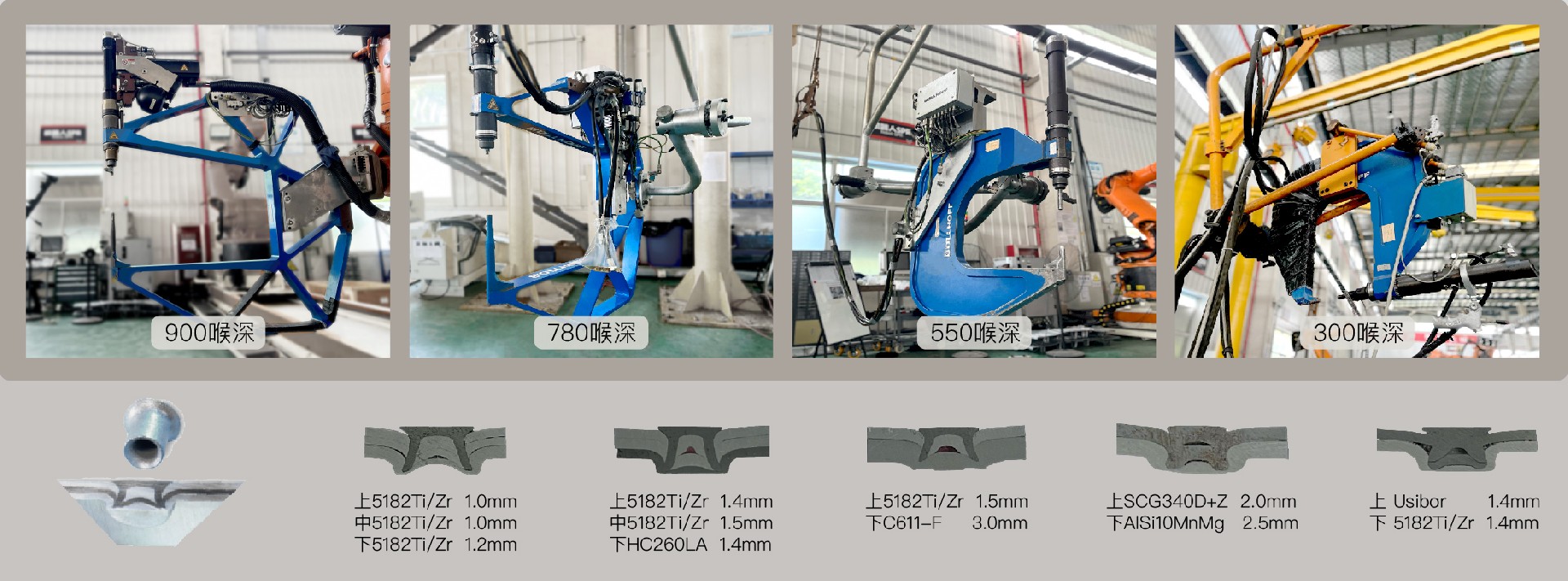

2.自冲铆接Self-Piece Rivet

        从一种材料穿刺并固定到另一种材料的连接方式，适用于同种和异种材料连接，强度强于铝点焊，涂胶后强度更高。技术核心是根据不同的材料选择铆钉和铆模的型号。峰范支持全套铆模试验，并与Bolhoff Lab深度合作，峰范配置6台可以切换其他品牌铆模的Bollhoff设备，从300到900喉深，覆盖整个车身铆接。

Two way access, different materials can be easily jointed strength is better than spot welding. Recommended the Combination use with the adhesive. Eco-mount support the rivet dies selection for different material. Deeply cooperation with Bollhoff-China.6 rivet gun sets, throat from 300 to 900, can match whole body connection. The different brands rivet dies all can match the guns.

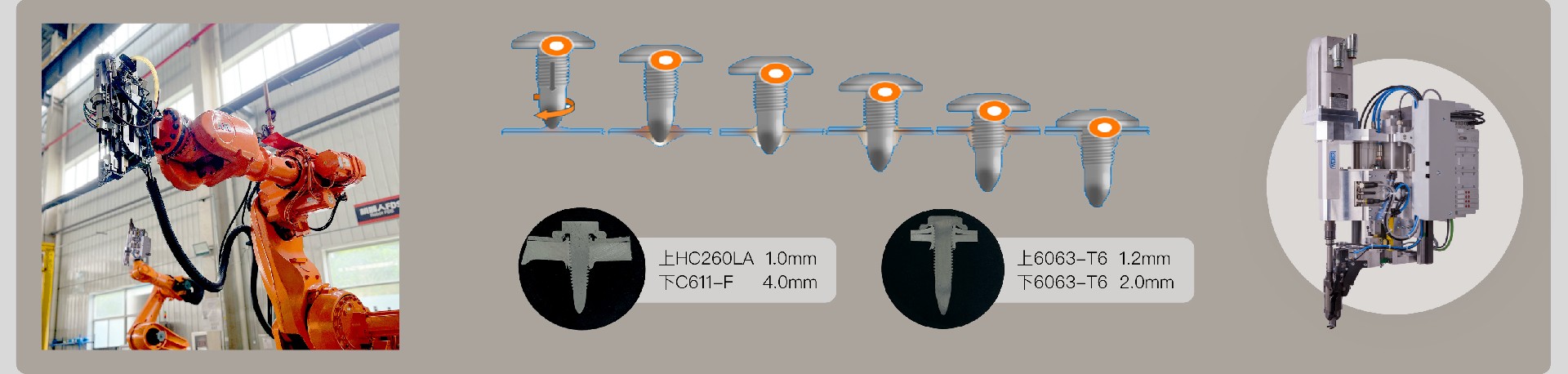

3.流钻螺接(FDS)Flow Drilling Joining System
        可在仅能单侧接近的拧紧位置完成拧紧作业，无需预冲孔即可直接拧紧，形成一个公制螺纹，可与其他接合技术组合，例如粘接。
For one way access. Upper and Lower plates can be Aluminum or Steel. The joint without preparedhole. Forming a metric screw. Combine with other connection technology even better.

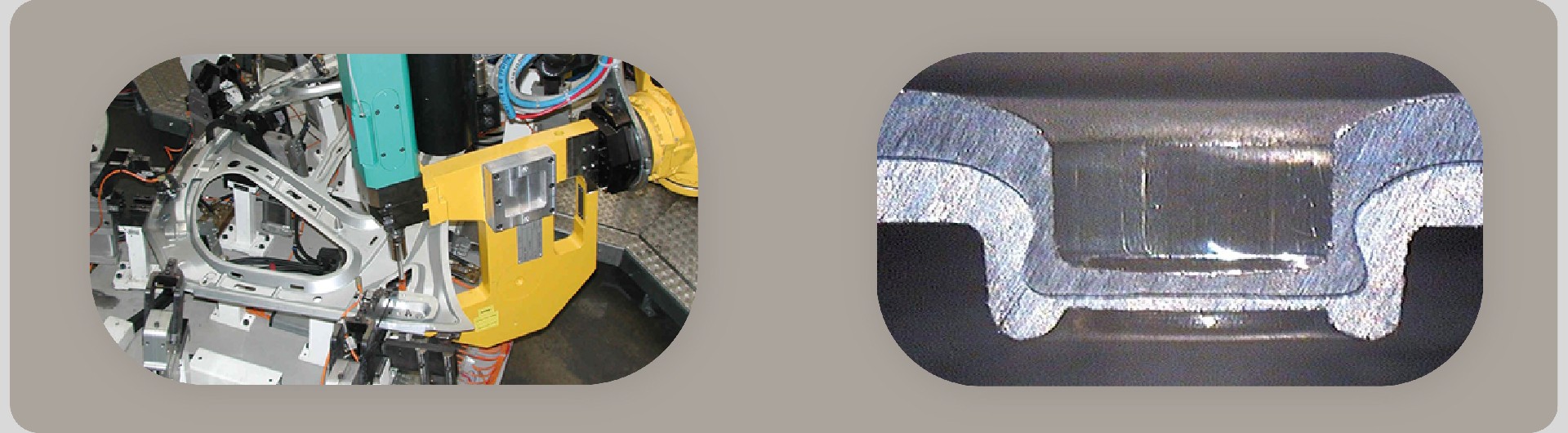

4.无钉铆接TOX (Clinch)
        两侧接入(无需预留孔)，不同材料的接合十分容易，材料强度不可过高以防冲压变形;无需耗材(无铆钉铆接)，主要应用于铝门盖较链和锁扣的连接。
Two way access (prepared hole not required), Different materials can be easily jointed. Both materiasheets must not be too strong for straining with Punch. Element not required (Rivet joint without rivet pin). Application in the connection of closure inner and hinge panels.

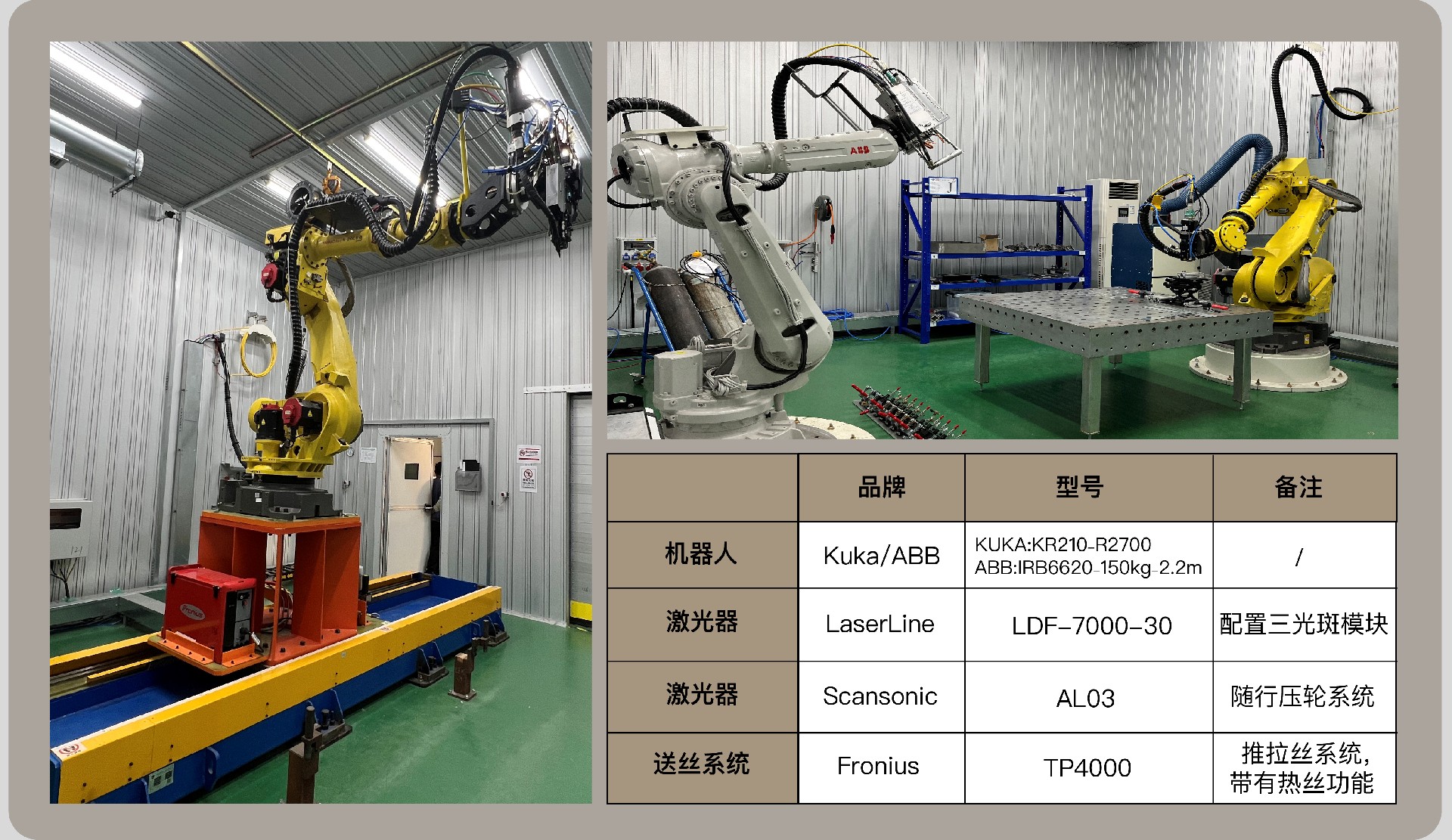

5.激光焊接/钎焊 Laser welding/brazing
